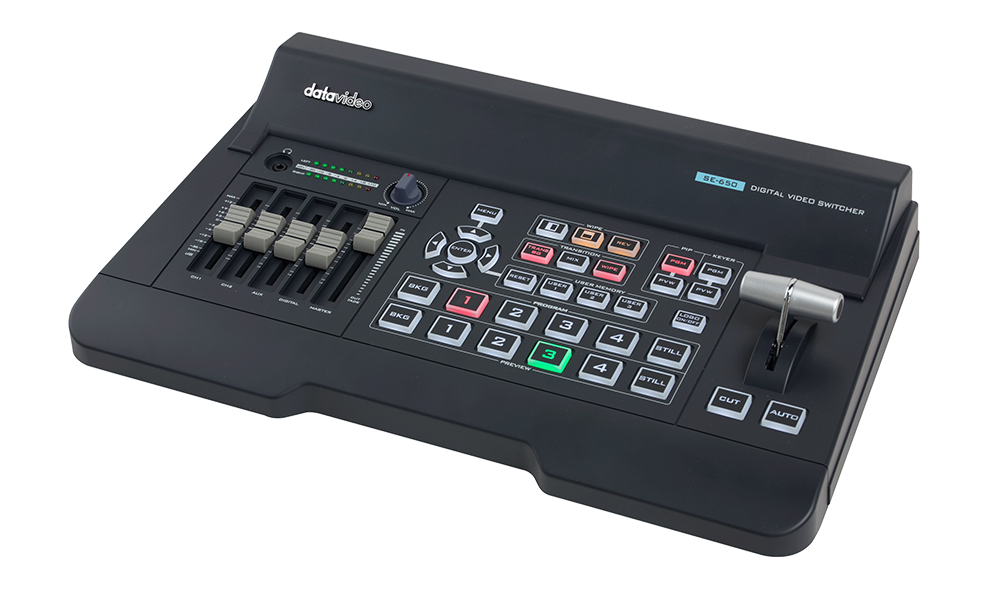

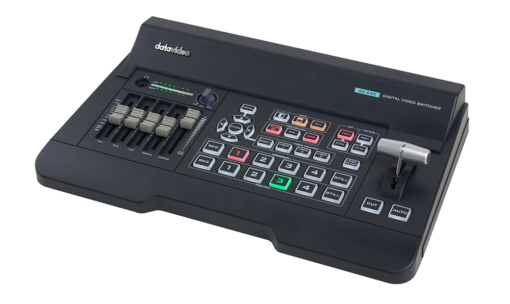

Datavideo SE-650

The SE-650 is Datavideo’s most affordable SDI+HDMI switcher available.

With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

Add to wishlist

Category: Live production switchers Tags: 4K Camera, 4kcamera, Cinema Camera, datavideo, live event, live production, live streaming, Production Camera, Switchers, Vision Mixers Brand: Datavideo

SE-650

Video Standard

–

Video Format

1080i 50/59.94/60Hz
720p 50/59.94/60Hz

–

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4

–

Input Routable / Crosspoint

All 4, repeatable

–

Video Input

2x HD-SDI
2x HDMI

–

Mix HD & SD Source

—-

–

Computer Graphic Interface

2 via HDMI

–

Video Output

2 x HDMI (1 is MV, 1 is Assignable)
1 x HD-SDI (Assignable)

–

Down-Converted Output

—-

–

Built-in Multi-view Monitoring Out

HDMI & SDI assignable

–

Analogue Audio Input

1 x Stereo RCA (L/R)
2 x Mono Microphone

–

Analogue Audio Output

1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)

–

Digital Embedded Audio Support

Input 2 channels, Output 2 channels

–

Audio Delay Calibration

—-

–

A+V Switching

Yes

–

Chromakey

–

Title Creator

—-

–

USK

2x Keyer support Chromakey/ Linear/ Luma Key

–

DSK

1x DSK support Lumakey/ Linear key (Key / Fill)

–

Picture in Picture

–

Logo Insertion

–

Still Store

500

–

Effects

FTB, Cut, 32 Wipe with border

–

Transition Preview

Full transitions preview

–

Sync / Reference In/Out

Built-in Genlock (internal)

–

Tally Output

1x D-sub 15pin, dual color

–

PC Remote Control

DVIP (Ethernet)

–

Camera Control

—-

–

Built-in Audio Mixer

Yes, 4 channels

–

Storage

—-

–

Recording File System

—-

–

Recording File Format

—-

–

Video Encode

—-

–

Audio Encode

—-

–

Streaming Protocol

—-

–

Firmware Update

USB

–

Special Features

Free Virtual Set and Stinger transition included

–

Chassis

Unibody

–

Dimension (LxWxH)

400 x 250 x 82 mm

–

Weight

1.9 kg

–

Power

DC 12V, 29W

–

Operating Temp. Range

0~40 °C

–

What’s in the Box

1 x SE-650 product
1 x AD Switch DC 12V with AC Cord

SDI and HDMI Inputs on a Budget

The SE-650 is Datavideo’s most affordable SDI+HDMI switcher available.

With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog

Easy on the outside. Professional on the inside.

The SE-650’s intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students.

Though it’s geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey.

Built-in audio mixer

The SE-650’s built-in audio mixer means that you’ve got everything you need to control your audio input levels.

For most productions, this means that there’s no need to buy a separate external audio mixer.
